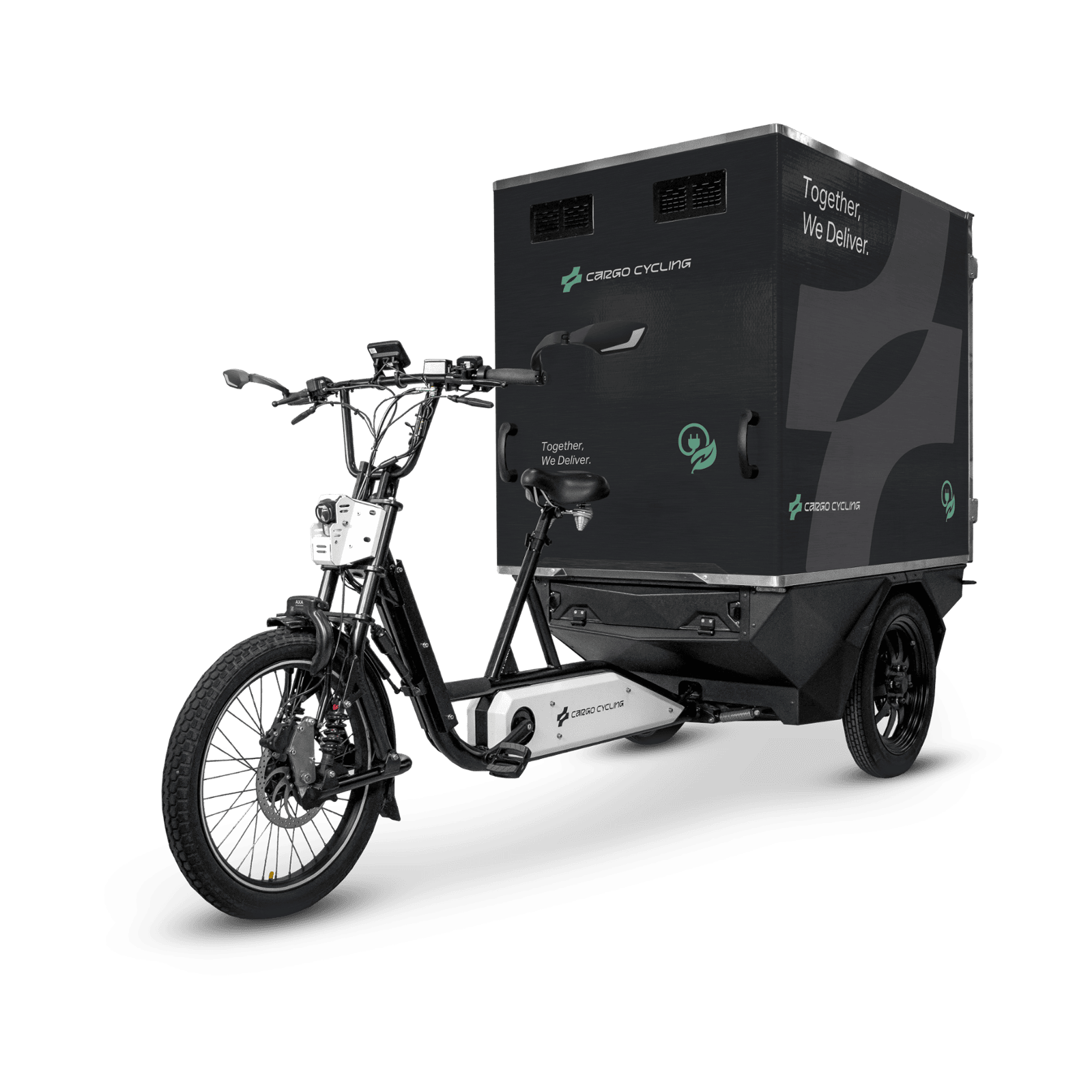

Chariot FS2
Meet the Chariot FS2 - a next-generation electric cargo trike built for heavy-duty transport. With a 200 kg load capacity and up to 1700 liters of cargo, it balances stability, strength, and ease of use. Designed from years of real-world experience, the FS2 exceeds the expectations of fleet managers and professional riders.
Key Features:
Lower Total Cost Of Ownership
The FS2 uses a chainless drivetrain and durable components to minimize wear and maintenance. In combination with its electric assistance and long service intervals, it offers a cost-effective alternative to vans over the full lifecycle.
High Operational Uptime
A solid frame and smart design keep the FS2 on the road in demanding city environments. Optional IoT diagnostics and remote monitoring support timely maintenance and help prevent unexpected downtime.
Designede With The Rider In Mind
Comfort and control play an important role in daily operation. The FS2 is equipped with full suspension, a tilting mechanism that allows the rider to lean naturally in corners and ergonomic components such as an adjustable saddle post. This ensures a stable and comfortable riding position that reduces strain and supports safe working conditions.
Scalable And Flexible For Urban Logistics

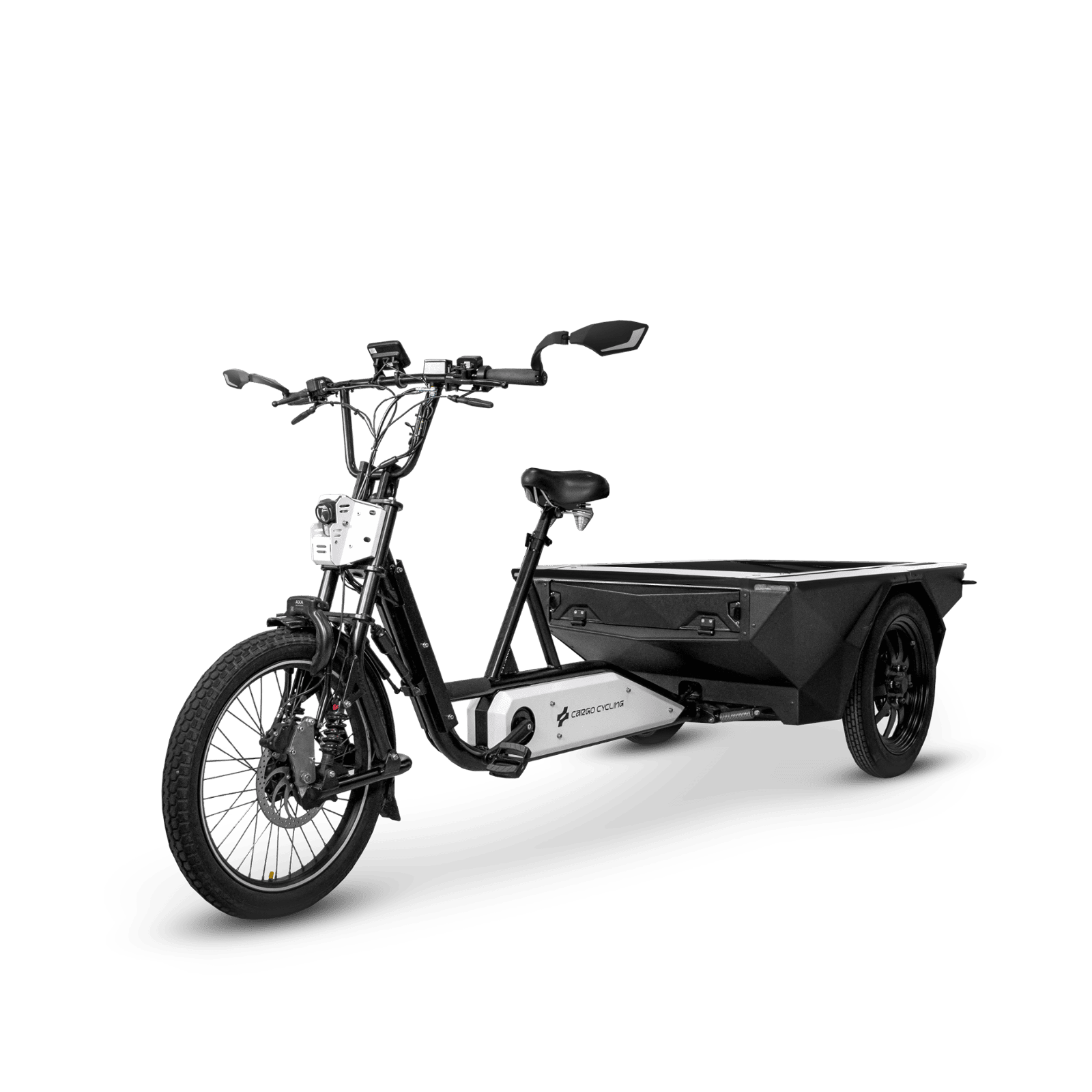

The modular construction allows different cargo bodies and configurations for parcel, equipment or service transport. Fleets can expand or adapt easily while keeping performance and maintenance consistant.
Technical Specifications
- Length: 3000 mm
- Width: 1000 mm
- Height: 1730 mm
- Road clearance: 175 mm
- Vehicle weight: 210 kg
- Max total gross vehicle weight: 550 kg
- Turning circle: 3040 mm

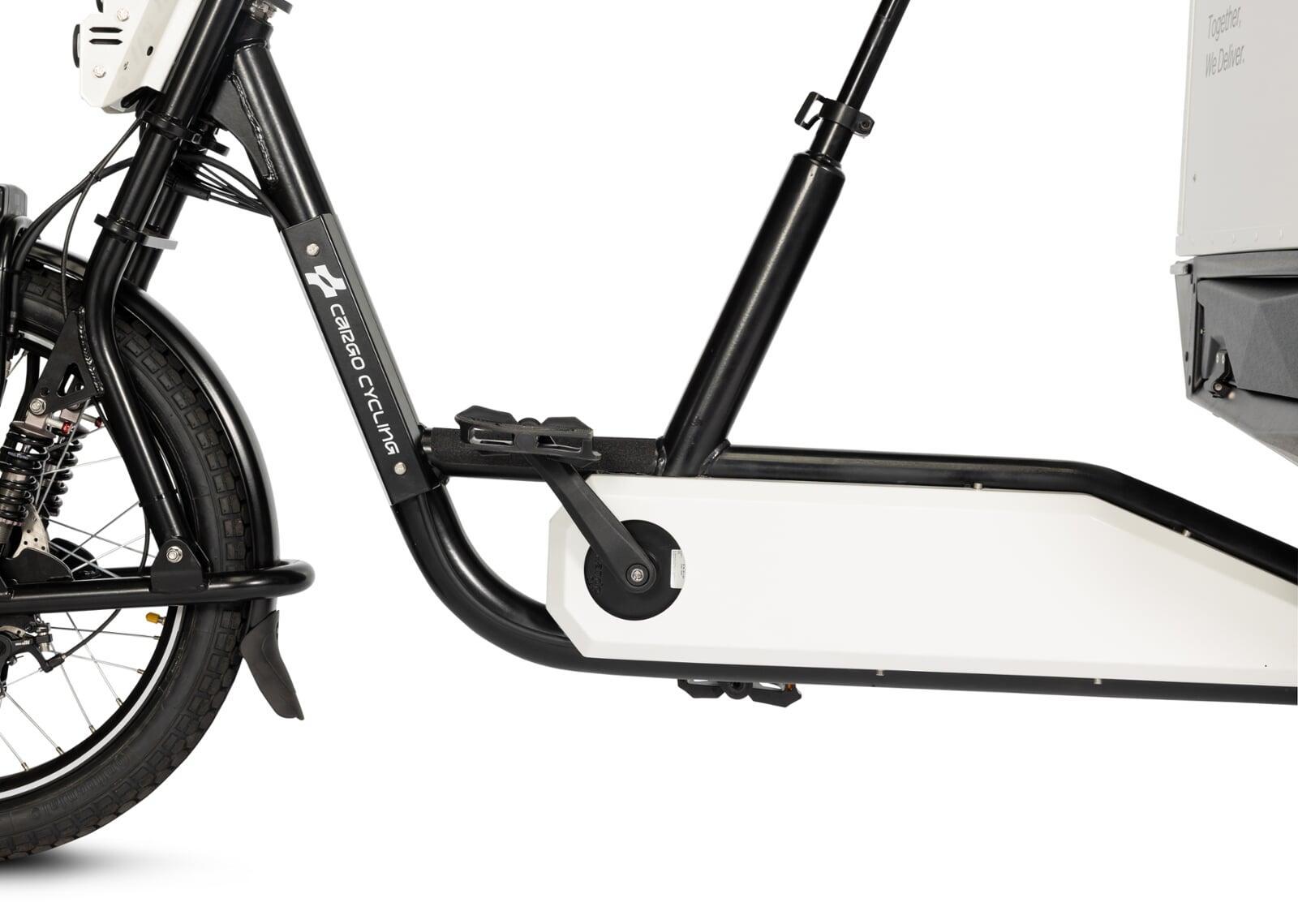

- Type: Movaria Chainless E-Drive
- Motor: Motor Gearbox Unit Movaria
- Drive: Rear-wheel drive
- Torque: Peak torque of 350Nm
- Reverse drive: Yes, 4 km/hr
- Walk-assit mode: Yes, 4 km/hr
- Drive modes: 5 modes
- Hill climb mode: Yes, up to gradient of 20%
- Certification: DIN 79010 / EN 15918
- Front light: Yes, light button
- Rear lights: Yes, light button
- Brake lights: Yes, including emergency stop signalling
- Third brake light: (Optional)
- Indicator lights: Front and rear
- Box light: (Optional) Yes, when opening the box
- Front brake: Fahrwerker heavy duty hydraulic cargo bike brake
- Rear brakes: Heavy Duty Quad hydraulic rear brakes
- Regenerative breaking: By pedalling backwards, spares break pads
- Elektronic parking brakes: Park mode activated with a push button and automatically activated when the bike is turned off
- Length: 1430 mm
- Width: 990 mm
- Height: max 1200 mm
- Max total payload: 200 kg
- Max shelf payload: 70 kg
- Volume: Max 1700 L
- Box weight: 40 kg

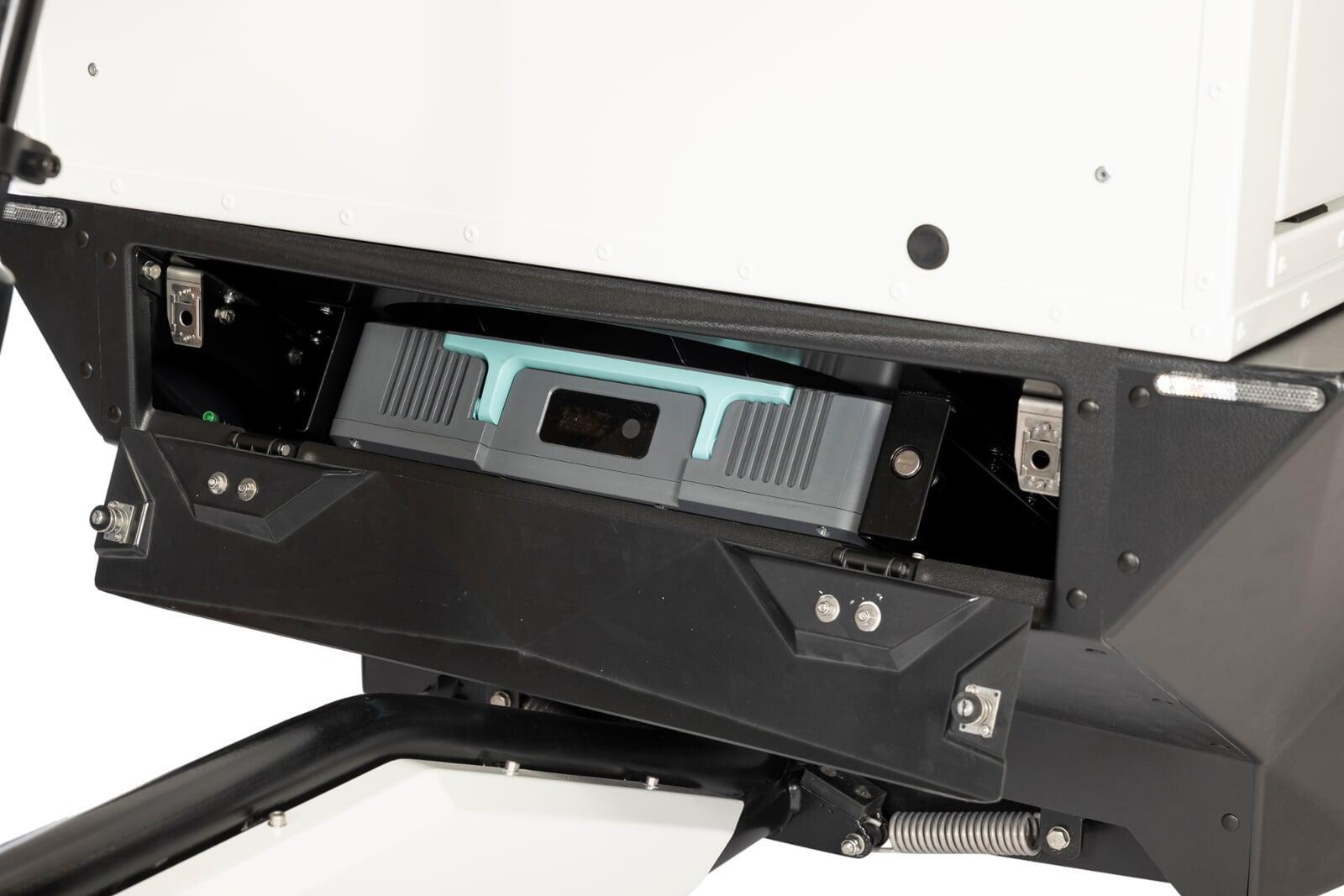

- Brand: AES SuperPack
- Dimensions: 400 x 268 x 89 mm
- Weight: 12 kg
- Capacity: 2x 1440Wh
- Range: Fully loaded, 20 - 25 km per battery
- Swappable: Yes, suitcase model
- Charging: 4- 6 hours
- Input: 100V - 240V / 50 - 60 Hz
- Certification: IE 62133-2:2017(AMD1:2021) / UL2271
- Riding dynamics: Tilting front frame
- Front wheel: Scooter-grade outer tube
- Rear wheel: Motor side care tubes

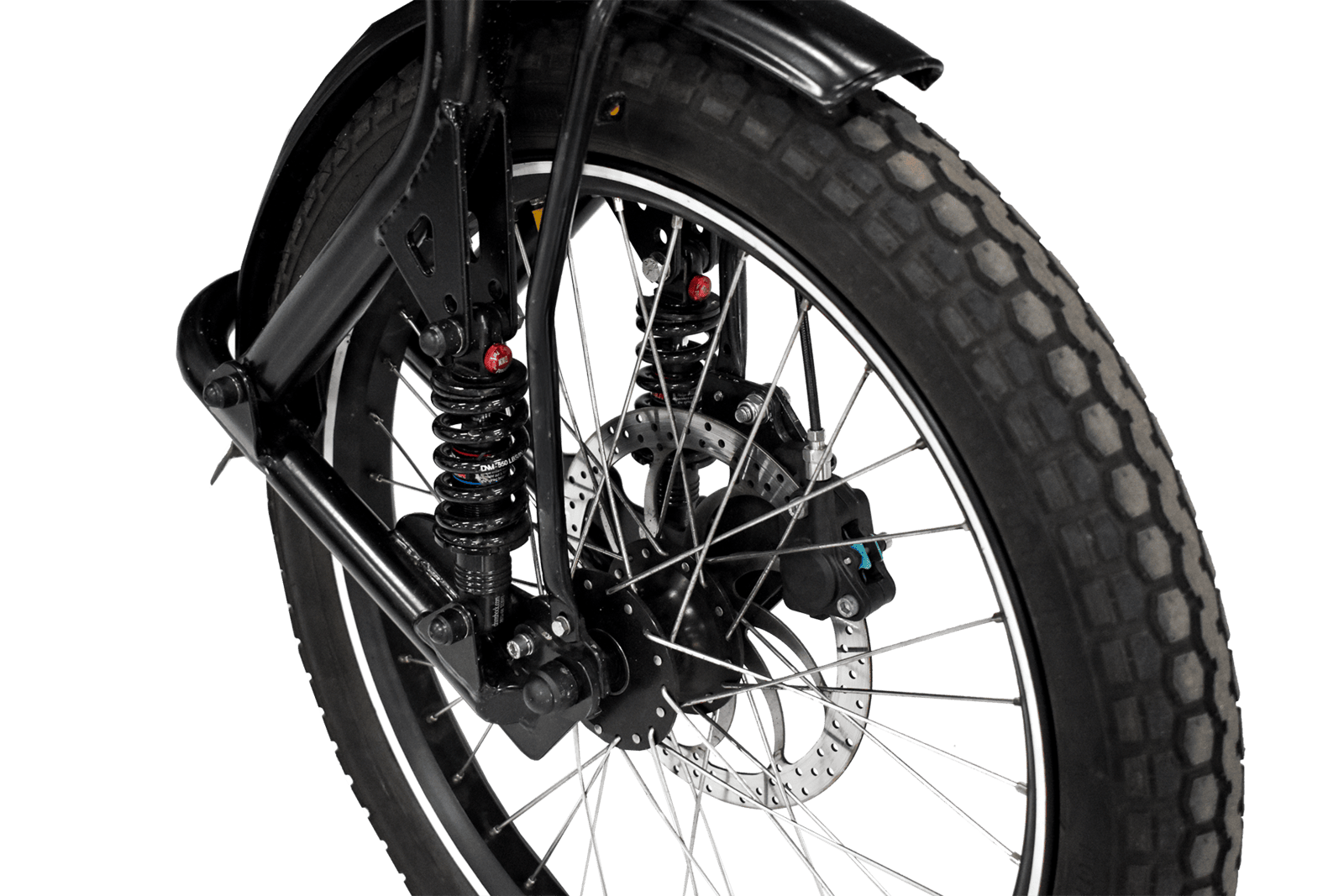

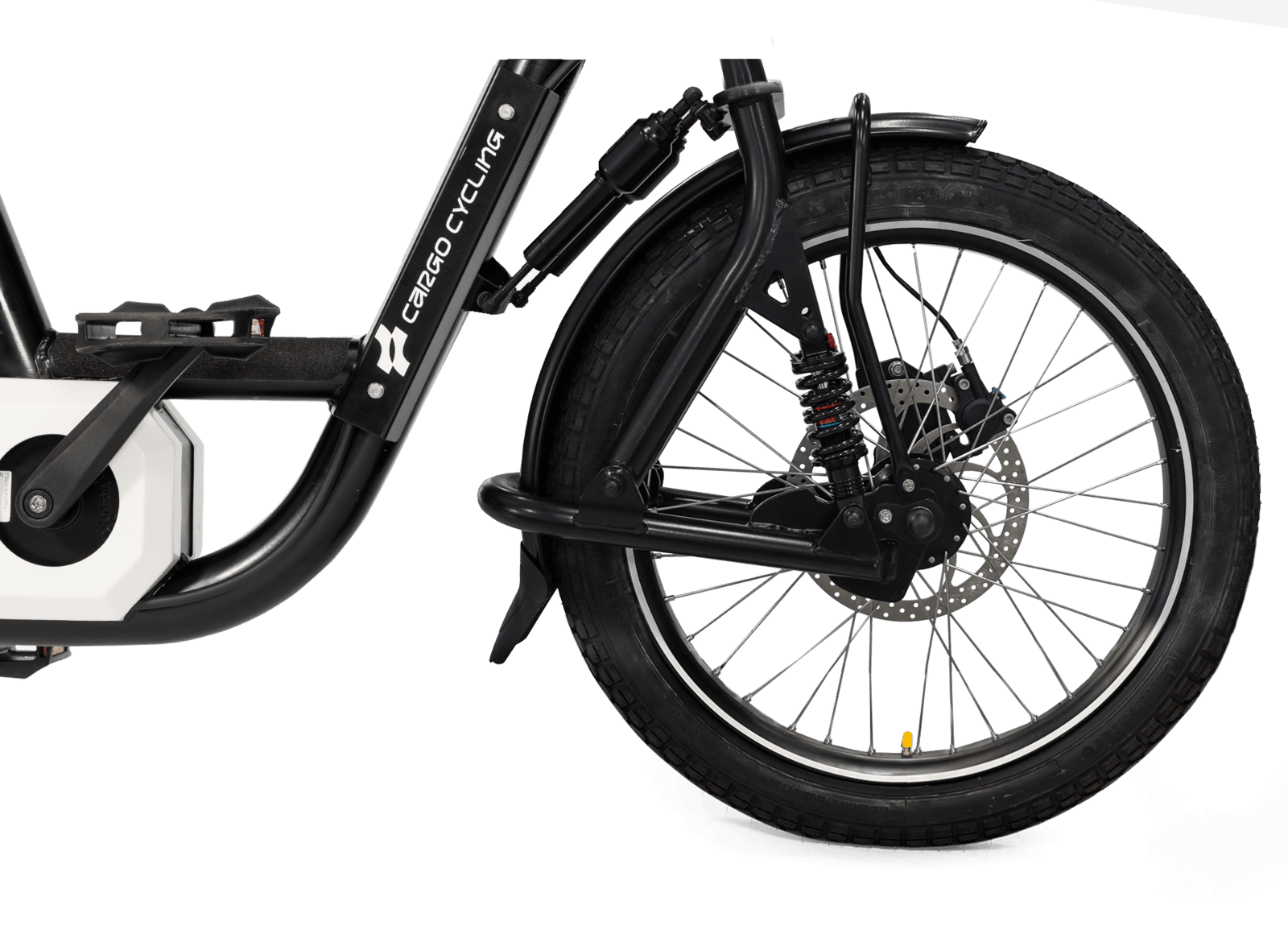

- Front suspension: Swing-arm suspension
- Rear suspension: Torsion suspension
- Ergonomics: Frame design, seat tube
- Rain protection: (Optional)
- Water bottle holder:(Optional)
- Phone mount: (Optional)
- Phone charging: Standard USB 5V

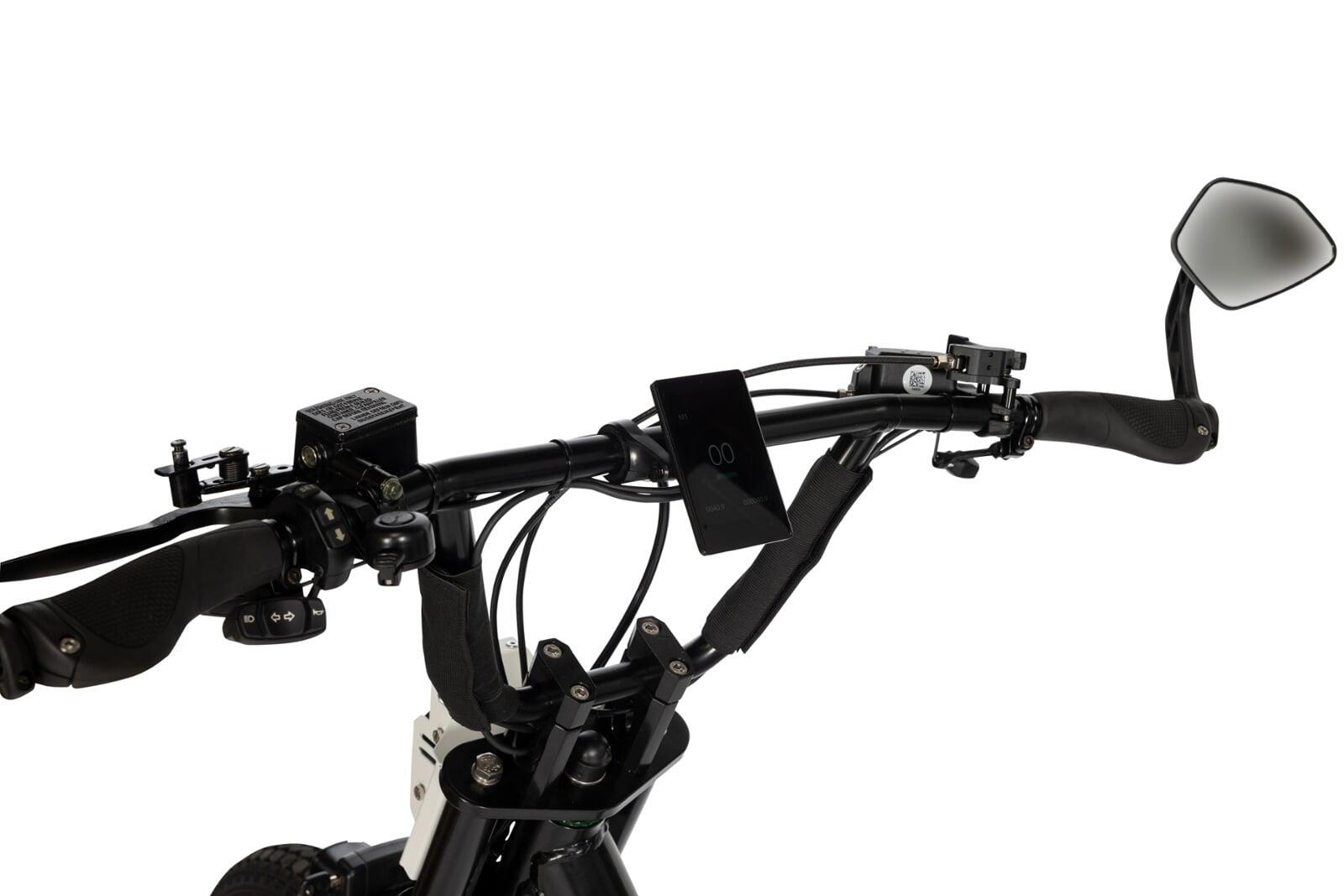

- Side view mirrors: Default
